e-MMC for Consumer & Industrial
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_hero_001_pc.png)
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_hero_001_sp.png)
e-MMC: The Right Choice for Lower Densities
KIOXIA’s broad, high-performance lineup of e-MMC products is equipped with an integrated controller that supports a high-speed memory interface compliant with JEDEC Version 5.0/5.1, eliminating the need for the host processor to directly control flash memory.
e-MMC remains an important solution for many applications that cannot migrate to the latest generation of UFS, due to lower density requirements, or because the processor does not yet support a UFS interface. Fabricated with solutions that utilize a 15nm process technology or the more advanced BiCS FLASH™ 3D flash memory, e-MMC is well-suited to a wide range of applications requiring e-MMC as an embedded memory solution.
Key KIOXIA e-MMC Features
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_img_002.png)
- Parallel interface
- C-Temp (-25℃ to 85℃) 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
- I-Temp (-40℃ to 105℃) 8GB, 16GB, 32GB, 64GB
- 11.5 x 13mm 153ball BGA package (4GB also offered in 11 x 10mm package)
- JEDEC Standard
KIOXIA e-MMC Key Technology
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_img_003.png)
Security - RPMB (Replay Protected Memory Block)
RPMB allows only authenticated access and prevents unauthorized data from being accessed in an RPMB partition. A unique authorized key is paired between the e-MMC device and the host. If e-MMC is paired with a different host (or vice versa), the RPMB partition will be inaccessible.
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_img_004.png)
Automatic Sudden Power Loss Protection (PLP)
Ensures all data that has been stored in NAND will remain intact and not corrupted if sudden power loss occurs. This built-in feature automatically restores the original data if writes are not completed before power loss occurs without the need for external capacitors or system back up power.
![](/content/dam/kioxia/shared/business/memory/mlc-nand/img/emmc_img_005.png)
Well Established Ecosystem
e-MMC has broad ecosystem support with open source software, chipsets and drivers. It supports lower density storage requirements and allows for easy adoption with low design-in effort.
KIOXIA e-MMC Key Applications
![](/content/dam/kioxia/shared/business/img/shared_link_004.png)
Notebook / Ultrabook™ / Tablet / Desktop PC / Gaming PC
![](/content/dam/kioxia/shared/business/img/shared_link_005.png)
Smartphone / Smartwatch / Smart glasses
![](/content/dam/kioxia/shared/business/img/shared_link_002.png)
Game console / Smart TV / Virtual Reality Headsets / Set-Top-Box/Digital Video Recorder / Smart speaker / Smart home / Wearables / Home Health / Home Network
![](/content/dam/kioxia/shared/business/img/shared_link_003.png)
Automation / Digital Healthcare / Transportation / Surveillance / Robot / Drone / Security / Digital Signage / Networking (5G area network) / PoS (Point of Sales)

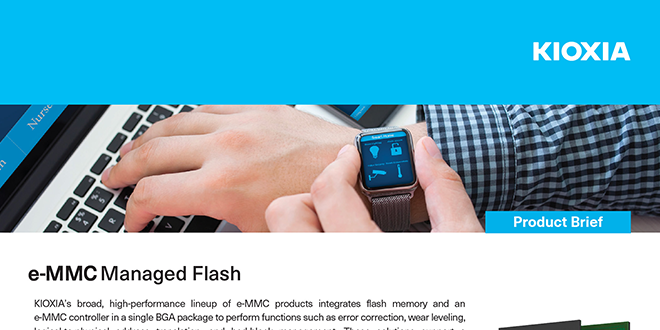

Learn and Evaluate
Consumer Grade e-MMC Specs
*Table can be scrolled horizontally.
Capacity | Part Number | e-MMC Version | Max Data Rate (MB/s) |
Supply Voltage | Operating Temperature (℃) |
Package Size (mm) |
|
---|---|---|---|---|---|---|---|
VCC (V) | VCCQ (V) | ||||||
4GB |
THGBMNG5D1LBAIT | 5.0 | 400 | 2.7 to 3.6 | 1.70 to 1.95, 2.7 to 3.6 |
-25 to 85 | 11.0x10.0x0.8 |
THGBMTG5D1LBAIL | 11.5x13.0x0.8 | ||||||
8GB | THGBMUG6C1LBAIL | 5.1 | |||||
16GB | THGAMVG7T13BAIL | 1.70 to 1.95 | |||||
32GB | THGAMVG8T13BAIL | ||||||
64GB | THGAMVG9T23BAIL | ||||||
64GB | THGAMSG9T24BAIL | ||||||
64GB | THGAMSG9T15BAIL | ||||||
128GB | THGAMVT0T43BAIR | 11.5x13.0x1.0 | |||||
128GB | THGAMST0T24BAIL | 11.5x13.0x0.8 | |||||
128GB | THGAMST0T25BAIL |
Industrial Grade e-MMC Specs
*Table can be scrolled horizontally.
Capacity | Part Number | e-MMC Version | Max Data Rate (MB/s) |
Supply Voltage | Operating Temperature (℃) |
Package Size (mm) |
|
---|---|---|---|---|---|---|---|
VCC (V) | VCCQ (V) | ||||||
8GB | THGBMJG6C1LBAU7 | 5.1 | 400 | 2.7 to 3.6 | 1.70 to 1.95, 2.7 to 3.6 |
-40 to 105 (1) | 11.5x13.0x1.0 |
16GB | THGBMJG7C2LBAU8 | 11.5x13.0x1.2 | |||||
32GB | THGBMJG8C4LBAU8 | ||||||
64GB | THGBMJG9C8LBAU8 |
- Tc=115°C max.
- Contact the KIOXIA Corporation's sales representative for sample schedule about new products.
- Details about your intended usage would be checked before submitting samples of the Industrial grade products.
