EDSFF E3 Form Factor

E3 - Enterprise Servers and Storage

E3.S and E3.L size and dimension E3.S and E3.L size and dimension
Type Thickness (mm) Width (mm) Length (mm) Max Power (W)
E3.S 7.5 76 112.75 25
E3.S 2T 16.8 40
E3.L 7.5 142.2
E3.L 2T 16.8 70

PCIe® Lanes per Connector

4, 8, 16, 16+ PCIe lanes per connector diagram

E3 Max Power

E3 SSD rendering with max power values

Engineering Specifications from SNIA

E3 Mechanical/Electrical Specification SFF-TA-1008 A new window will open.
E3 Thermal Characterization Specification SFF-TA-1023 A new window will open.
EDSFF Connector Specification SFF-TA-1002 A new window will open.
EDSFF Connector Pinout (PCIe) SFF-TA-1009 A new window will open.

KIOXIA EDSFF E3 Offerings

Systems Supporting EDSFF E3.S Form Factor SSDs

Many companies offer E3 form factor SSDs for their enterprise servers and storage solutions. Figure 1 shows an example of a storage server supporting the E3.S form factor.

Figure 1: Example of the E3.S form factor in a storage system

Learn and Evaluate

KIOXIA EDSFF Infographic (PDF : 426KB) PDF will open in a new window. UPDATED
Introducing the EDSFF E3 Family of Form Factors White Paper (PDF : 540KB) PDF will open in a new window.

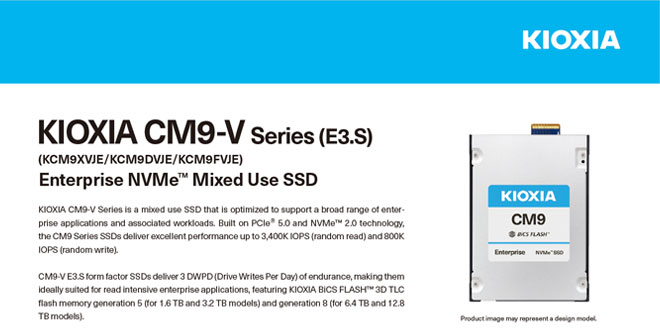

KIOXIA CM9-V E3.S Series Product Brief (PDF : 104KB) PDF will open in a new window. NEW

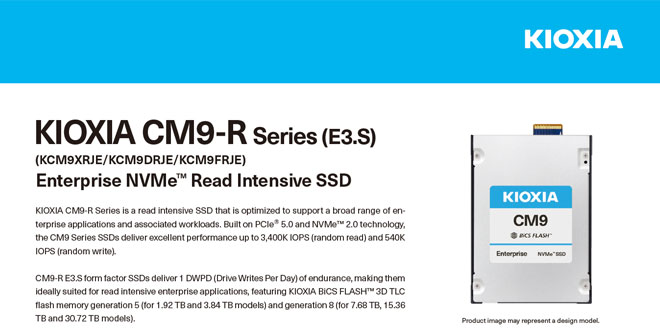

KIOXIA CM9-R E3.S Series Product Brief (PDF : 102KB) PDF will open in a new window. NEW

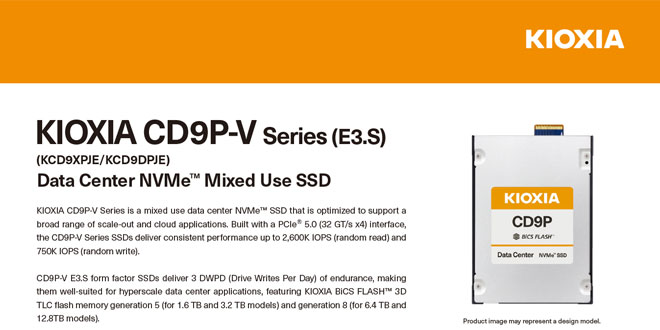

KIOXIA CD9P-V E3.S Series Product Brief (PDF : 104KB) PDF will open in a new window. NEW

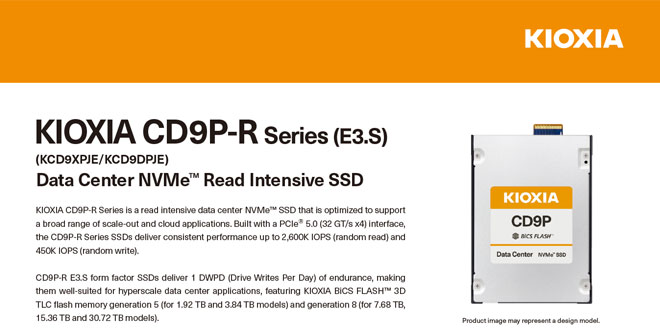

KIOXIA CD9P-R E3.S Series Product Brief (PDF : 104KB) PDF will open in a new window. NEW
